[LF-03-FR] SF6 Gas Leak Detector – NDIR Sensor, GB/T11023-2018 Certified

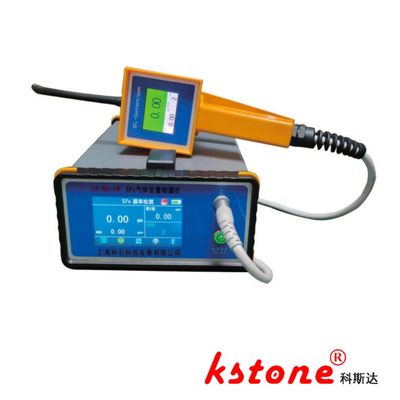

Gambar besar : [LF-03-FR] SF6 Gas Leak Detector – NDIR Sensor, GB/T11023-2018 Certified

Detail produk:

Tempat asal:	Shanghai
Nama merek:	KSTONE
Sertifikasi:	ISO9000
Nomor model:	LF-03-Fr

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	5
Harga:	$2000-$100000
Kemasan rincian:	Karton / kotak kayu
Waktu pengiriman:	7-10 hari kerja
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	1000 per tahun

Kontak

Detil Deskripsi produk

Menyoroti:

GB/T11023-2018 SF6 Gas Leak Detector

NDIR Sensor SF6 Gas Leak Detector

[LF-03-FR] SF6 Gas Leak Detector – NDIR Sensor, GB/T11023-2018 Certified

The LF-03-FR is a cutting-edge handheld tool designed to pinpoint SF6 leaks in high-voltage infrastructure such as GIS, circuit breakers, and switchgear. Equipped with imported NDIR infrared sensors and refined calibration tech, it detects leaks as tiny as 0.1ppm with ≤±2% F.S. accuracy, delivering results in under 1 seconds.

Standout Features:

✅ Budget-Friendly Alternative to Wika/Dilo – Top-tier performance at a competitive price

✅ Long-Lasting Power – 6+ hours of continuous use with rechargeable lithium batteries

✅ User-Friendly Design – Intuitive touchscreen (800×480 color LCD) + real-time audio-visual alerts

✅ Advanced Leak Tracking – Built-in hood algorithm computes leak rates for proactive upkeep

✅ Verified Quality – Complies with GB/T11023-2018 standards, validated by China’s national metrology institute

Ideal for utility teams, maintenance professionals, and industrial producers. Elevate your leak detection with speed and precision—secure yours now!

Technical Specifications	Details
Power Source	Rechargeable lithium battery or AC220V/50Hz
Detection Method	NDIR non-dispersive infrared (dual-beam)
Measurement Range	0-1000 PPM (customizable)
Accuracy	≤±2% F.S. (full-scale)
Sensitivity	0.1 ppm
Response Time	≤1 seconds
Warm-Up Time	≤3 minutes
Design	Handheld suction-type
Humidity Tolerance	≤90% RH
Display	Dual screens: 800×480 main LCD + 320×240 handle LCD
Controls	Resistive touchscreen
