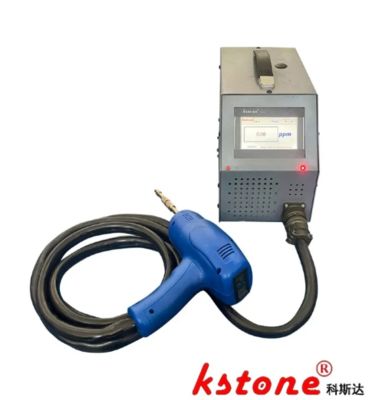

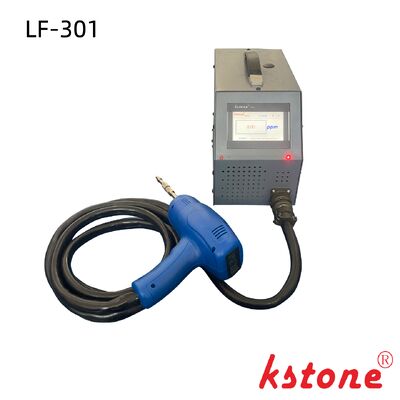

SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]

Gambar besar : SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]

Detail produk:

Tempat asal:	Shanghai
Nama merek:	KSTONE
Sertifikasi:	ISO9000
Nomor model:	LF-301

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	$25000-$26000
Kemasan rincian:	Karton / kotak kayu
Waktu pengiriman:	30 hari kerja
Syarat-syarat pembayaran:	T/t
Menyediakan kemampuan:	1000 per tahun

Kontak

Detil Deskripsi produk

Rentang pengukuran:	0.01ppm - 10000ppm	Ketepatan:	0.01ppm
Min. Resolusi:	0.01ppm	Gas dan selang terintegrasi listrik dari detektor:	Panjang standar adalah 3 meter (dapat disesuaikan sesuai kebutuhan, hingga 10 meter)
Kabel Input Daya:	2 meter	Daya Masukan:	220V ± 22V 50Hz ± 2Hz (tersedia catu daya inverter baterai eksternal)
Menyoroti:	0.01ppm SF6 Leakage Detector , 0.5s SF6 Leakage Detector

SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]

Overview

It adopts the principle of low-voltage ionization in a high-frequency magnetic field. The product has no radiation source, which is safe and reliable. There are no vulnerable parts in the product, and the usage and maintenance cost is low. It is durable. An external lithium battery inverter power supply is required when needed.

Accurately quantify 0.01ppm.

Technical Parameters:

Measurement Range	0.01ppm - 10000ppm(v)
Measurement Accuracy	0.01ppm(v)
Minimum Resolution	0.01ppm(v)
Recovery Time from "Poisoning"	≤10 seconds in an environment of 99.99% SF6 1 second in an environment of 10% SF6
Response Time	≤0.5 seconds for 10ppm ≤1 second for 1ppm
Indication Method	Direct display of ppm on the touch screen with a resolution of 0.01ppm; for example, 99.99ppm LCD digital display of the detector: The higher the leakage concentration, the greater the digital change; Buzzer prompt: The higher the leakage concentration, the greater the sound frequency change of the buzzer
Gas and Electric Integrated Hose of the Detector	Standard length is 3 meters (Can be customized as required, up to 10 meters)
Power Input Cable	2 meters
Input Power	220V±22V 50Hz±2Hz (External lithium battery inverter power supply is available)
Ambient Temperature	5℃ - 45℃
Ambient Humidity	≤85%
Power	≤100W
Net Weight of the Whole Machine	Detector: 1.2Kg Main unit: 7Kg
External Dimensions of the Main Unit	310×168×200mm
Outer Packaging	Aluminum alloy anti-collision box
Gross Weight	12Kg
External Dimensions of the Aluminum Alloy Box	370320270mm
